R.F. O10

Solution for depannage with rear automatic fork.

Technical features

The layout RF O10 eto vehicles with a weight of 3500 kg and is characterized by its ease and speed of action in any situation when you need to remove a car.
All maneuvers are also possible from the cabin by the control with the help of back-up camera.

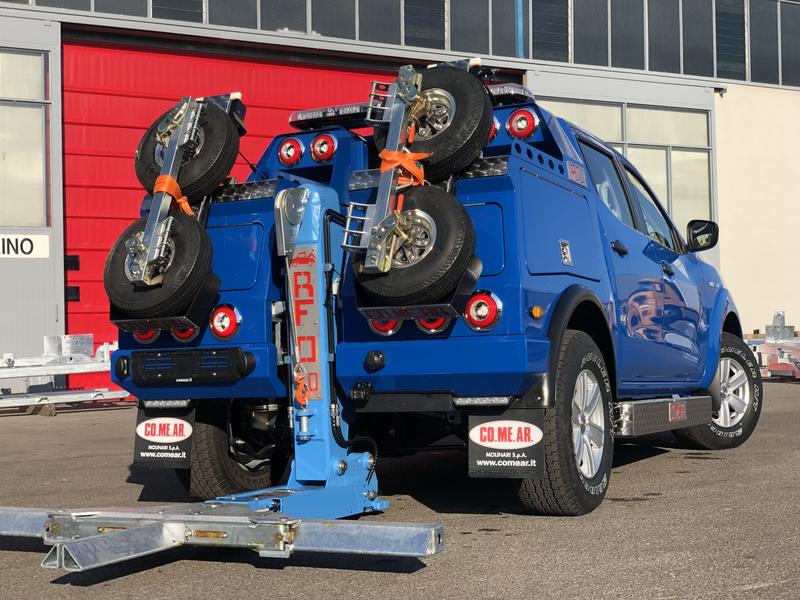

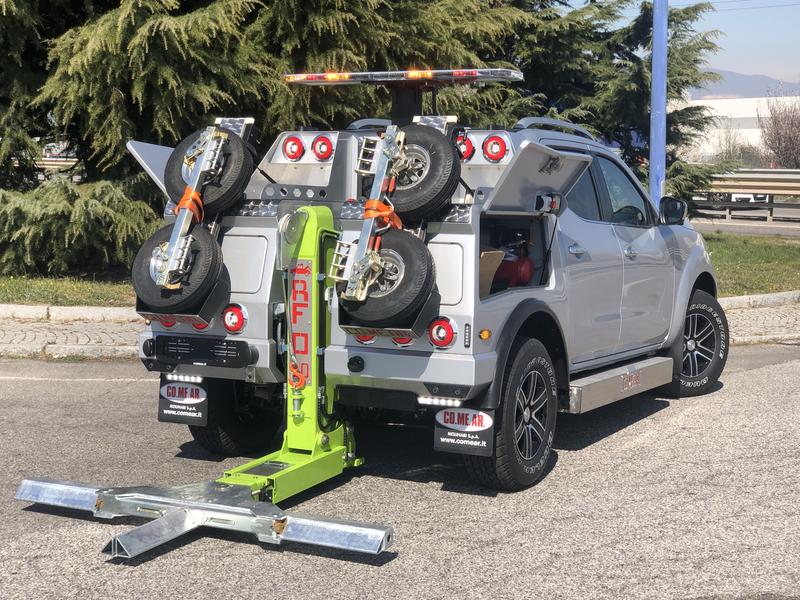

The device fork is able to rotate 90 °, this allows to remove parked vehicles, positioning perpendicularly to the vehicle to remove.
A flag with the pulley, positioned at the end of the fixed arm, allows the postponement of the winch cable to help bring the vehicle to be rescued.
The opening and closing of the device to the gallows is hydraulic and allows removing a vehicle without alighting from the vehicle.



Equipment

  • Device 1 Ton Truck rear.
  • Electric winch on the gallows.
  • LED bar.
  • Remote control.
  • Display in the cabin and in the box.
  • Self-leveling rear air bellows.
  • Backup Camera.
  • Cables for starters.
  • Roll bright.
  • Fixed carts.
  • N ° 04 Rear work light.
  • Lights repetitive.
  • Flash, front and rear.
